Question on Alignment 2: Orientation

Post here for help on using FreeCAD's graphical user interface (GUI).
Forum rules
and Helpful information
IMPORTANT: Please click here and read this first, before asking for help

Also, be nice to others! Read the FreeCAD code of conduct!
Bance
Veteran
Posts: 2704
Joined: Wed Feb 11, 2015 3:00 pm
Location: London

Re: Question on Alignment 2: Orientation

Post by Bance »

I can't guarantee, that I used exactly the same positions as in the example, but they would appear to have been similar.
manos wrote: Thu Jul 07, 2022 7:19 am Does anybody know anything more specific about this ?
Check out the "right hand rule," that explains why transposing one of the points leads not to a rotation but a 'flip'.
manos
Posts: 264
Joined: Thu Nov 12, 2020 10:48 am
Location: Greece

Re: Question on Alignment 2: Orientation

Post by manos »

Thank you @Bance
domad
Veteran
Posts: 1044
Joined: Mon Jun 22, 2020 12:16 pm

Re: Question on Alignment 2: Orientation

Post by domad »

manos wrote: Thu Jul 07, 2022 7:19 am ....
Very interesting and useful. Does anybody know anything more specific about this ?
Hi manos, greetings to the Community!

Here is an animation showing an alignment with a "universal method"...
Attachments
drmacro
Veteran
Posts: 5934
Joined: Sun Mar 02, 2014 4:35 pm

Re: Question on Alignment 2: Orientation

Post by drmacro »

I get it, understand learn the default tools...

But, these examples are the reasons I use Manipulator. So, just to show the alternates.

Select a face, Ctrl-select another face click one icon. Done.

Want is flipped the other way, click a checkbox, then click the icon.

Align the normals, a checkbox, then click the icon.


:roll:
Attachments

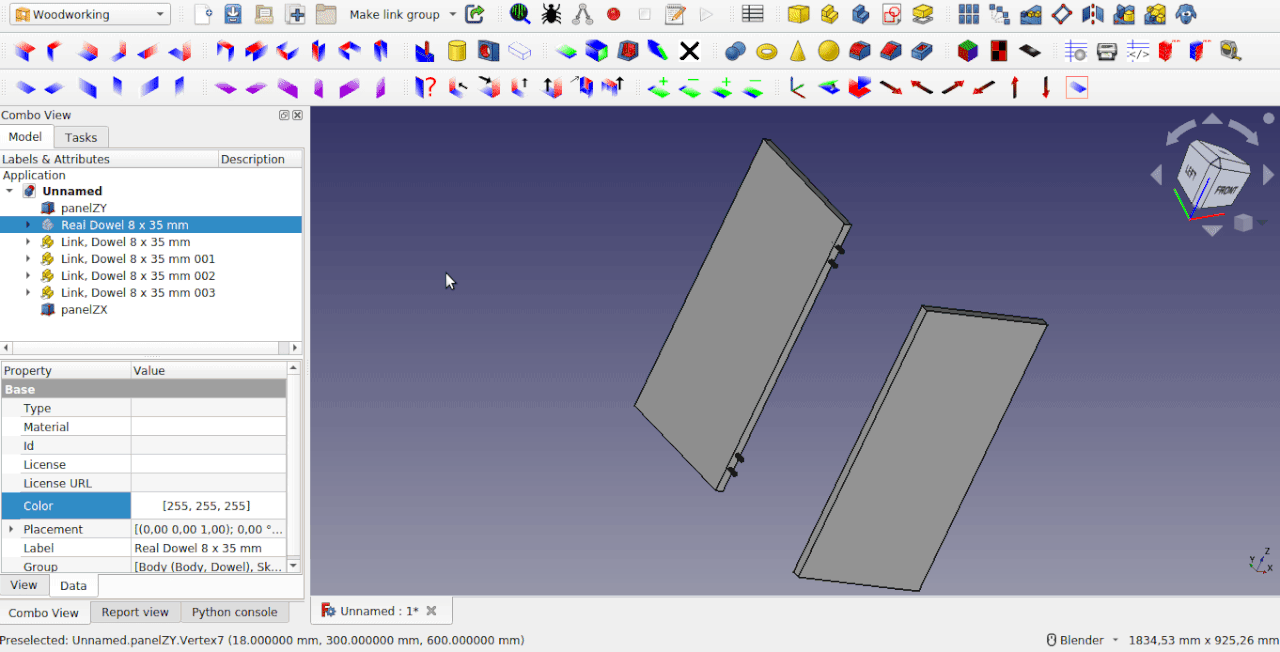

Peek 2022-07-07 14-35.gif
Peek 2022-07-07 14-35.gif (490.69 KiB) Viewed 266 times
Star Trek II: The Wrath of Khan: Spock: "...His pattern indicates two-dimensional thinking."

My beginners, written treatise: Learning FreeCAD
User avatar
dprojects
Posts: 434
Joined: Mon Mar 06, 2017 6:02 pm
Location: Poland
Contact:

Re: Question on Alignment 2: Orientation

Post by dprojects »

I didn't know such tool exists at FreeCAD and I created my own one ;-) LOL


Thanks
Darek
github.com/dprojects

workbench for woodworking is available at: github.com/dprojects/Woodworking

I don't want to kill anyone LOL, is it still OK to be for total free?
manos
Posts: 264
Joined: Thu Nov 12, 2020 10:48 am
Location: Greece

Re: Question on Alignment 2: Orientation

Post by manos »

domad wrote: Thu Jul 07, 2022 6:16 pm Here is an animation showing an alignment with a "universal method"...
Thanks Domad but is it safe to use it with bodies from PartDesign ?
manos
Posts: 264
Joined: Thu Nov 12, 2020 10:48 am
Location: Greece

Re: Question on Alignment 2: Orientation

Post by manos »

dprojects wrote: Thu Jul 07, 2022 7:11 pm I didn't know such tool exists at FreeCAD and I created my own one ;-) LOL
Woodworking WB It sounds intertesting .
Thanks dprojects
manos
Posts: 264
Joined: Thu Nov 12, 2020 10:48 am
Location: Greece

Re: Question on Alignment 2: Orientation

Post by manos »

drmacro wrote: Thu Jul 07, 2022 6:37 pm I get it, understand learn the default tools...
But, these examples are the reasons I use Manipulator.
:roll:
OK Manipulator then, I will try it once more drmacro.
domad
Veteran
Posts: 1044
Joined: Mon Jun 22, 2020 12:16 pm

Re: Question on Alignment 2: Orientation

Post by domad »

manos wrote: Fri Jul 08, 2022 7:00 am .......
Thanks Domad but is it safe to use it with bodies from PartDesign ?
Hi manos, greetings to the Community!
It is the oldest, safest and most stable method (not that the others are not) but unlike the others you learn to reason and understand "work plans" and 3D modeling (in the strict sense of the definition) by managing it appropriately "the virtual universe" regardless of the modeling software.
Here are some modeling examples whose sketches and bodies have been positioned in this way:

https://forum.freecad.org/viewtopic.php ... 80#p506513

https://forum.freecad.org/viewtopic.php ... 9db3e06714

https://forum.freecad.org/viewtopic.php ... 9db3e06714
manos
Posts: 264
Joined: Thu Nov 12, 2020 10:48 am
Location: Greece

Re: Question on Alignment 2: Orientation

Post by manos »

domad wrote: Fri Jul 08, 2022 7:46 am
Here are some modeling examples whose sketches and bodies have been positioned in this way:
https://forum.freecad.org/viewtopic.php ... 80#p506513
Thanks for the examples. The first seems to me be the more promising.
Post Reply
